PVC Windows Exclusive Line SC-Winchester

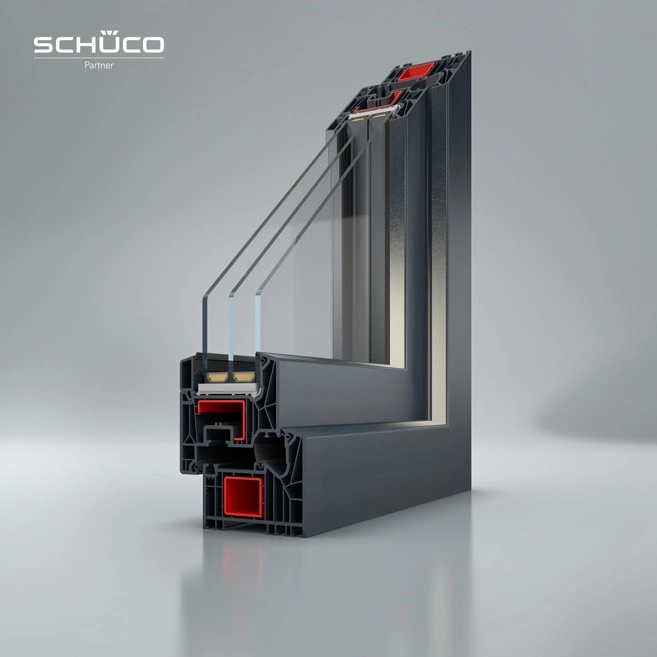

PVC window system – Exclusive Line is a innovative, 7 – chamber solution in Schüco LivIng system, which guarrantee very high thermal insulation.
PVC window system – Exclusive Line is a innovative, 7 – chamber solution in Schüco LivIng system, which guarrantee very high thermal insulation. Because of the usage of reliable and durable solutions in this system we are offering a 10 years warranty. The Exclusive Line window is a product that will help You to:
- protect You against burglary (RC2)
- allow You to save up to 45% on heating (Triple gasket system)
- let You enjoy the unique aesthetics of the window (SELECT fittings)
- Triple glazing 4/18/4/18/4 Ug=0,5 W/m2 with SWISSPACER warm edge spacer.
Security – Feel Secure!
If You decide on Security Exclusive Line, You may be sure, You will be safer than ever. Windows in that version, are the products with RC2 burglary protection class. Equipped with 8 octagonal bolts* located on the whole circuit of the frame, allows on calling them the safest windows on the market.
*depending on the sizes of the window, max. 8 octagonal bolts.
Elegant – Window hardware with invisible hinges
The Elegant version is a window equipped with tilt and turn fittings, discretely hidden in a space between frame and sash. Thanks to the unique design of SELECT fittings, the hinges are invisible when the window is closed. Usage of such solution, allow on obtaining sash load capacity even up to 150 kg. What is more, Elegant version, thanks to the SELECT fittings, achieve a better thermal insulation than normal windows because there are no thermal bridges.
Colors

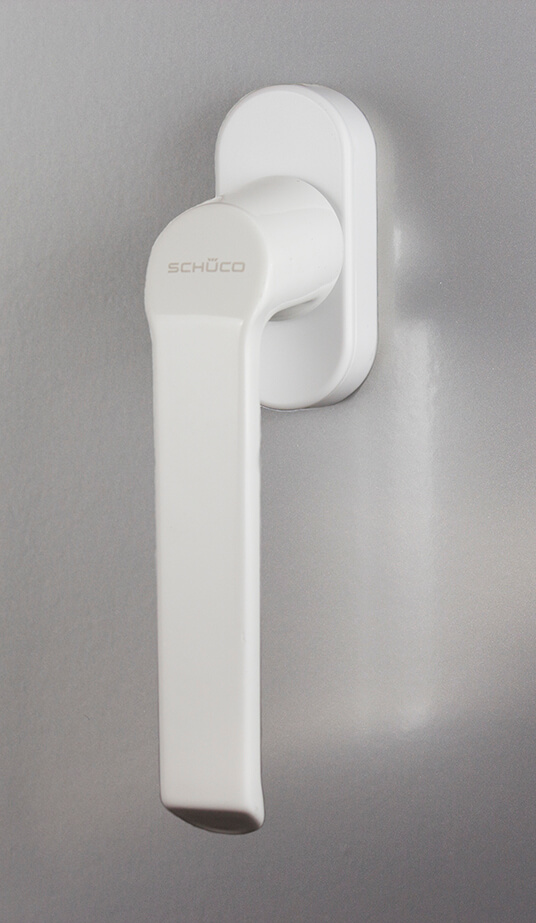

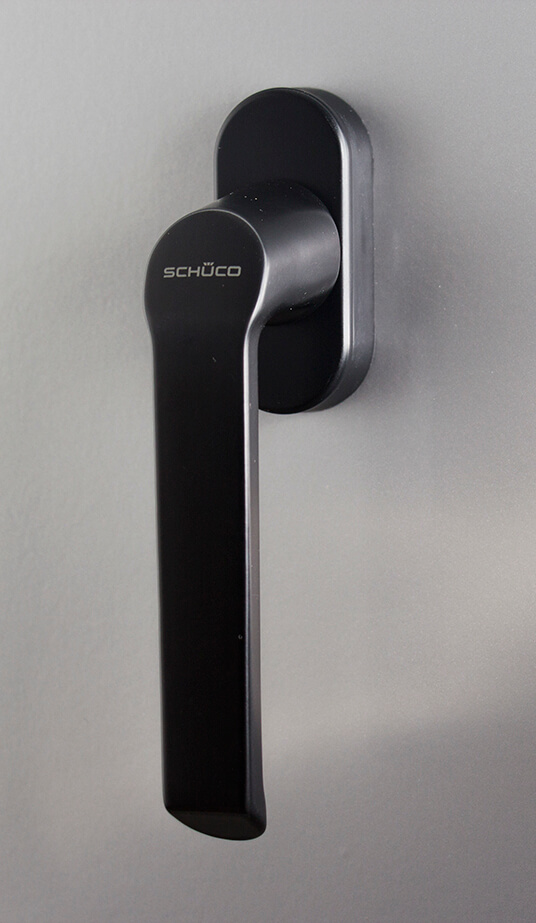

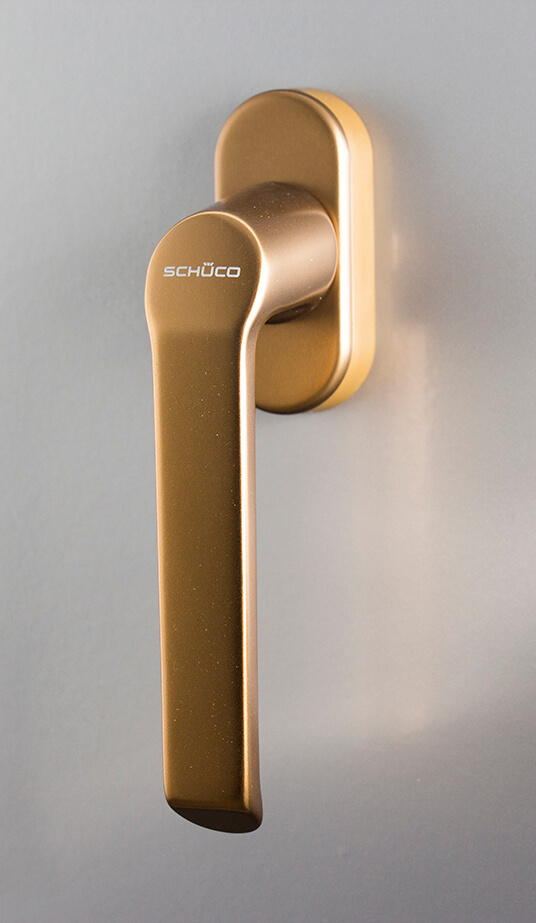

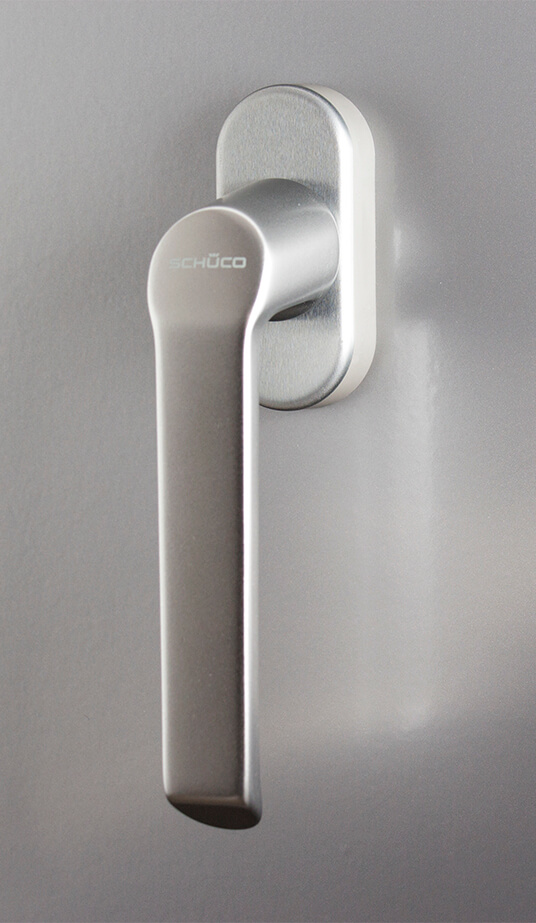

Fittings
The window fitting system with parallel action
Compared with conventional turn and tilt windows, the activPilot Comfort PADK offers another opening dimension in addition to the “turn” and “tilt” opening positions: “parallel action”. The sash is disconnected parallel to the frame. This creates an approx. 6 mm wide air gap, which guarantees a natural and safe ventilation in any weather. We intentionally took a different path in the development of the activPilot Comfort PADK fitting. The Tilt-First operating sequence has the advantage that the fitting is extremely smooth-running and enables high production tolerances. The operating sequence, which is coming more widely accepted on the market, offers additional security and is frequently used in nurseries, single homes, apartment blocks and residential homes for the elderly.
The special feature here is the dual function of the crosswise handle position: If the handle is moved to the crosswise position from below, the fitting is in the tilt position. If the handle is turned another 90° to the 180° position, the sash is in parallel action position. If the handle is turned back to the 90° position, the window sash can be moved to the turn position.
To close the window, the handle must be turned downwards to the initial position. A further benefit is that the activPilot Concept modular system can also be used for activPilot Comfort PADK.
The natural air exchange in parallel action is proven to create a healthy indoor climate. The special feature: This position offers the same protection from burglary as in the close state – burglary-resistance according to DIN EN 1627 – 1630 up to resistance class RC 2 is possible. The innovation: burglary-resistant ventilation!
The fully concealed turn-tilt fitting system
With activPilot Select, Winkhaus offers a fully concealed turn-tilt fitting, which means that the visual advantage of invisibility can also be achieved for heavy windows and doors up to 150 kg. A fitting system that is easy to install thanks to its intelligent modular construction, and that can be modified to reflect changing requirements at any stage.
Innovative technology that adds hidden strength:
activPilot Select opens up a new world of opportunities to window and building component manufacturers. Sashes weighing up to 150 kg with a surface area of 3 m² are easy to handle with this innovative turn-tilt fitting. activPilot Select therefore fulfils modern architectural requirements in new buildings and restoration work, also with regard to energy efficiency. Now, large-surface triple glazing is no problem. The standard activPilot Select model will bear up to 100 kg. It is also possible to increase the load bearing capacity from 100 kg to max. 150 kg at a later stage. Two easily retrofittable add-on components are all you need.
Flexible configuration – fast installation
activPilot Select’s user-friendly design offers window builders vastly simplified and accelerated installation and adjustment of the fittings with no special tools. No need for special drilling or complicated milling when producing windows. Locking points can be moved right into the corners – for more stability and safety. Depending on the sash weight, sashes can be fitted by a single qualified employee.
Other
...

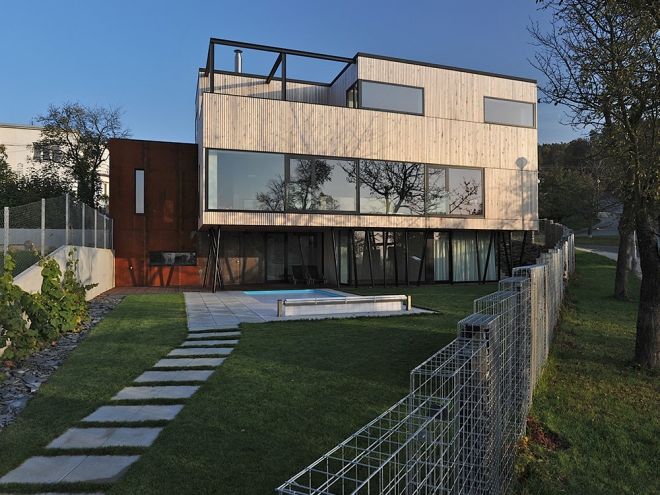

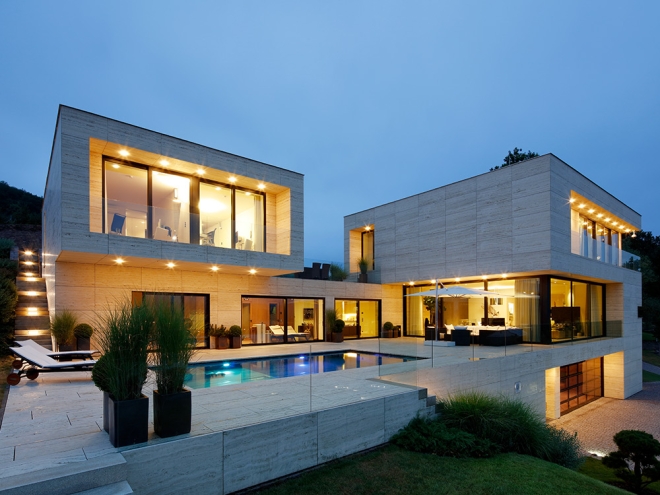

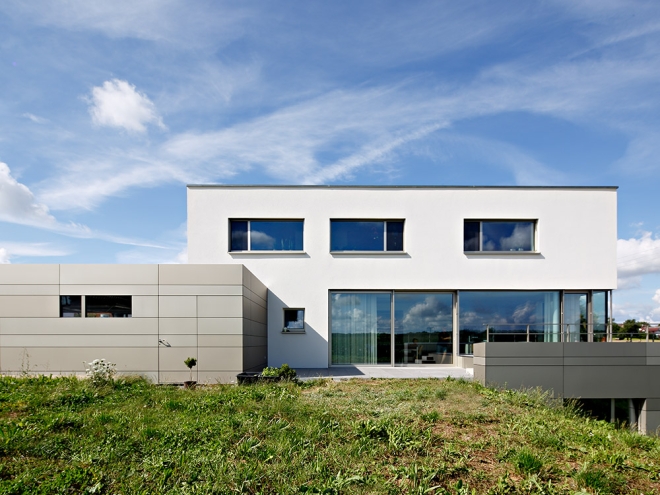

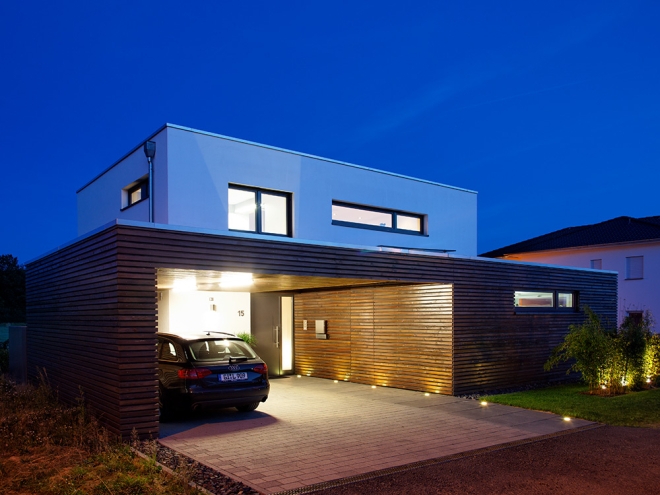

Photo gallery
