PVC Windows Eco Arte SAL-White
The bluEvolution 73 window system will meet all of your window design needs with style and sophistication: High-density surfaces not only make the profile particularly easy to clean, but also guarantee an exceptionally long service life.
The bluEvolution 73 window system will meet all of your window design needs with style and sophistication: High-density surfaces not only make the profile particularly easy to clean, but also guarantee an exceptionally long service life. The profile system prevents thermal bridges and cuts energy costs substantially. The intelligent structural design of the profile, featuring large steel reinforcements, ensures the excellent stability and reliable functionality of the PVC windows.
- 5-chamber 73mm profile
- 2 seals
- Double glazed package
- Class A
Colors

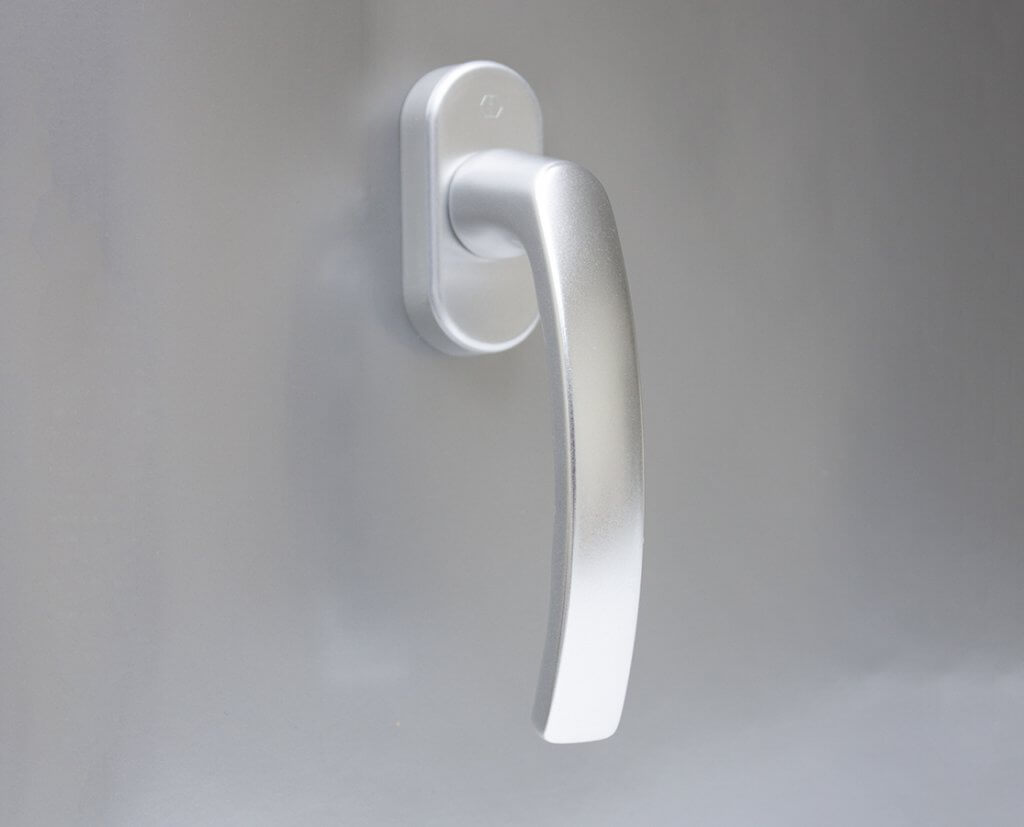

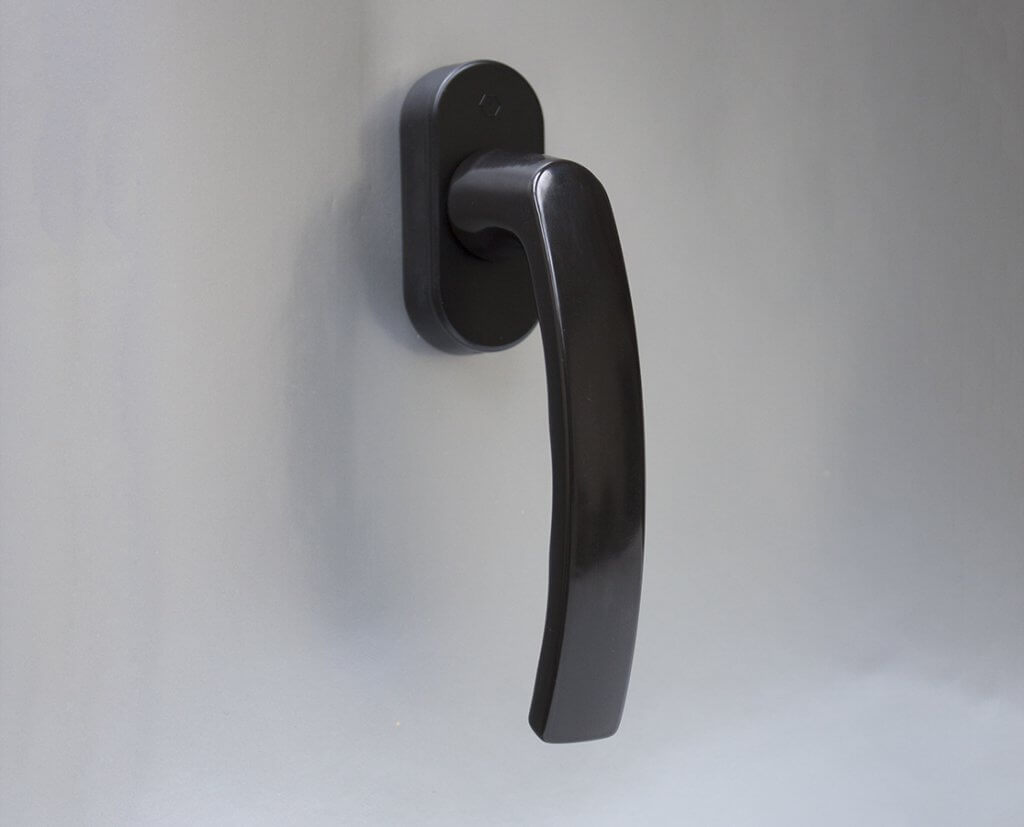

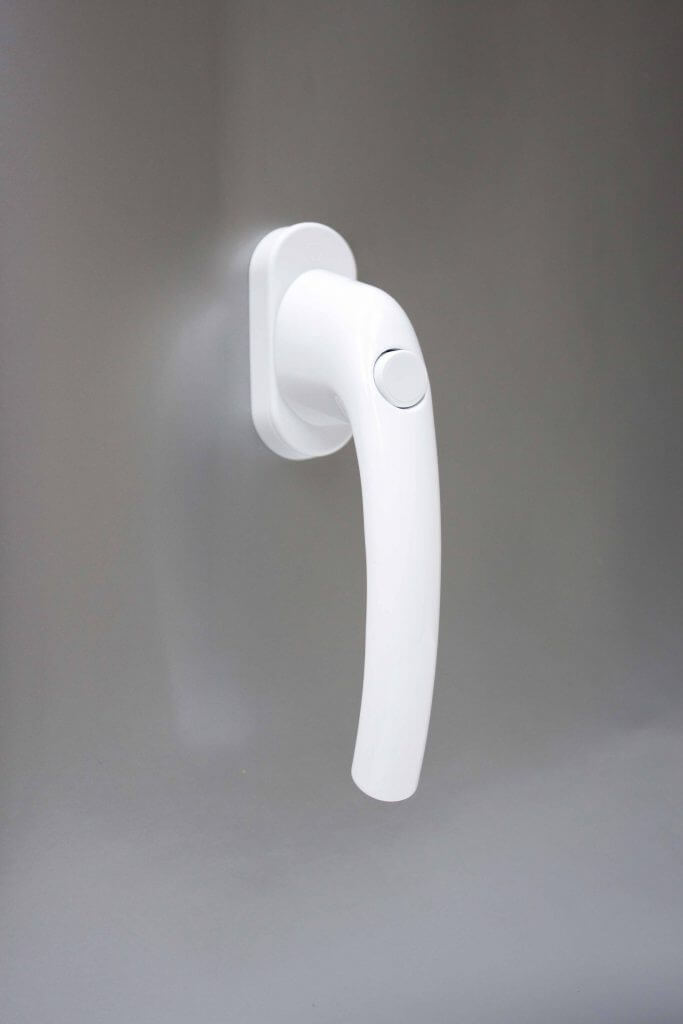

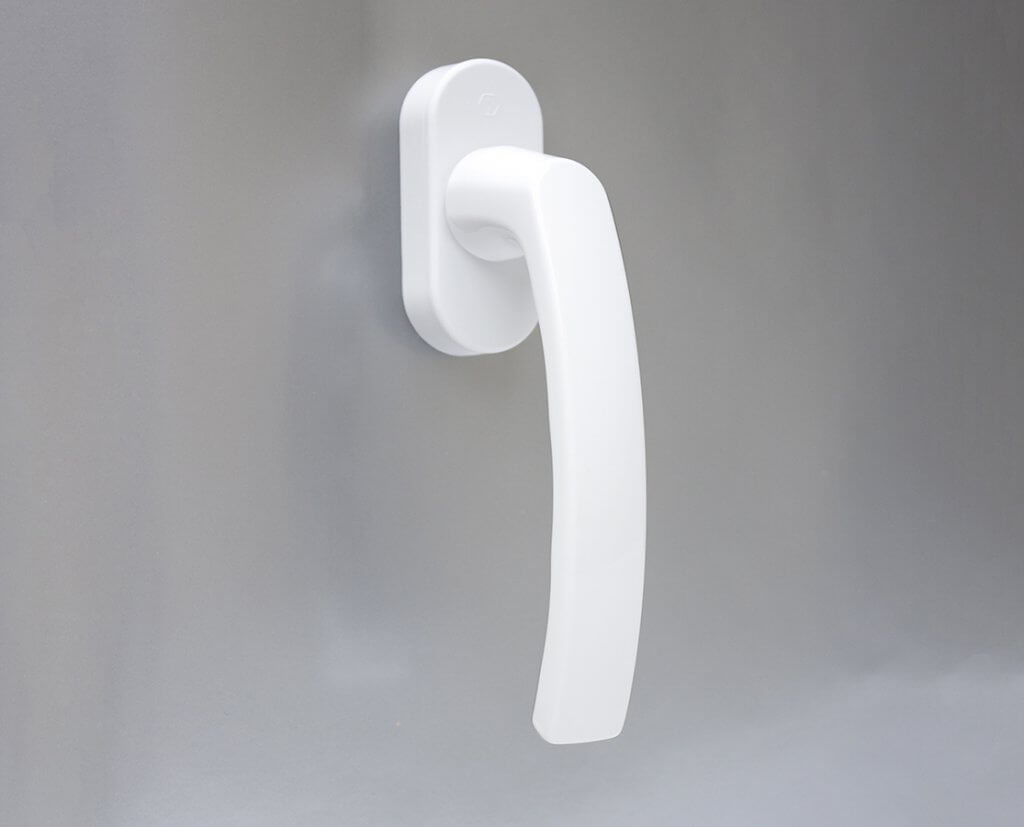

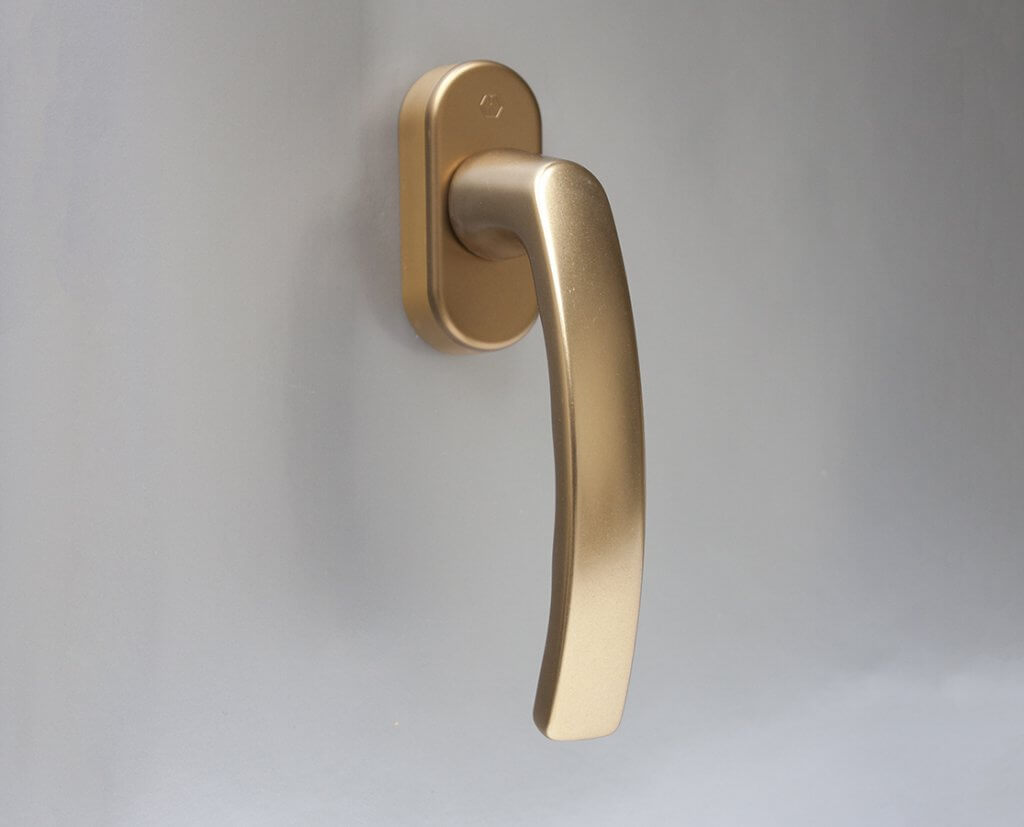

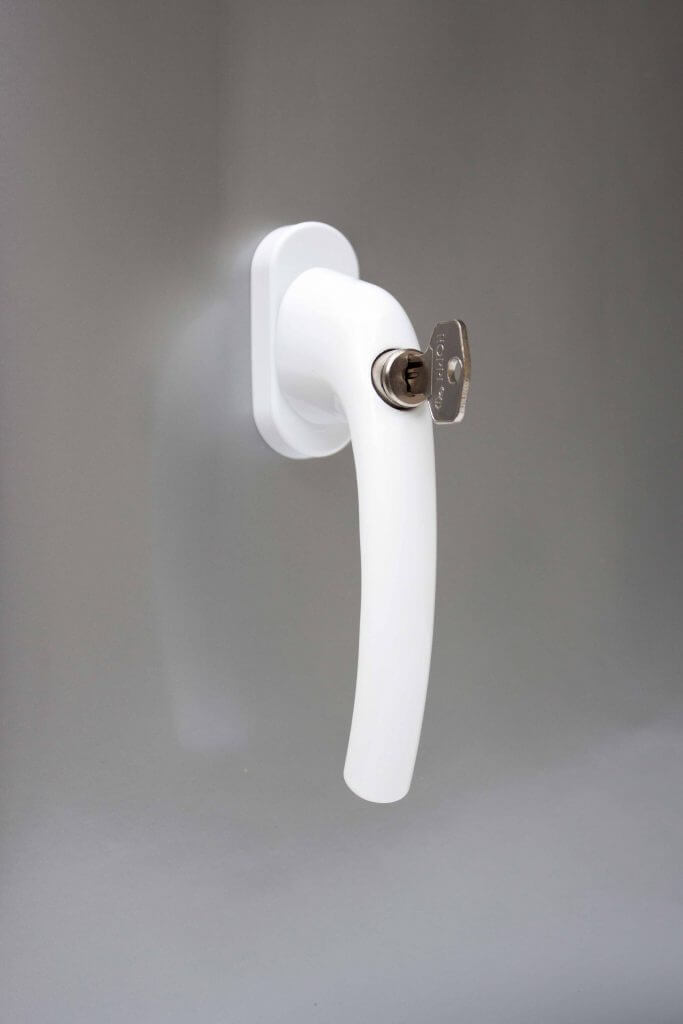

Fittings
With activPilot Concept, a fitting system has been created, which sets itself apart on the market with its special design and impresses with functionality and operating comfort. The intelligent, clearly-structured modular activPilot system offers window builders significantly improved processing efficiency, in particular due to the drastically reduced number of components. With its future-orientated design, activPilot also sets itself apart visually on the market with its special design and shines with an innovative external appearance.
The new locking system, the option of an easy security technology upgrade and a range of other attractive additional functions are just some of the arguments in favour of the activPilot fitting system, which leaves planners lots of room for the design and implementation.
The fully concealed turn-tilt fitting system
With activPilot Select, Winkhaus offers a fully concealed turn-tilt fitting, which means that the visual advantage of invisibility can also be achieved for heavy windows and doors up to 150 kg. A fitting system that is easy to install thanks to its intelligent modular construction, and that can be modified to reflect changing requirements at any stage.
Innovative technology that adds hidden strength:
activPilot Select opens up a new world of opportunities to window and building component manufacturers. Sashes weighing up to 150 kg with a surface area of 3 m² are easy to handle with this innovative turn-tilt fitting. activPilot Select therefore fulfils modern architectural requirements in new buildings and restoration work, also with regard to energy efficiency. Now, large-surface triple glazing is no problem. The standard activPilot Select model will bear up to 100 kg. It is also possible to increase the load bearing capacity from 100 kg to max. 150 kg at a later stage. Two easily retrofittable add-on components are all you need.
Flexible configuration – fast installation
activPilot Select’s user-friendly design offers window builders vastly simplified and accelerated installation and adjustment of the fittings with no special tools. No need for special drilling or complicated milling when producing windows. Locking points can be moved right into the corners – for more stability and safety. Depending on the sash weight, sashes can be fitted by a single qualified employee.
The window fitting system with parallel action
Compared with conventional turn and tilt windows, the activPilot Comfort PADK offers another opening dimension in addition to the “turn” and “tilt” opening positions: “parallel action”. The sash is disconnected parallel to the frame. This creates an approx. 6 mm wide air gap, which guarantees a natural and safe ventilation in any weather. We intentionally took a different path in the development of the activPilot Comfort PADK fitting. The Tilt-First operating sequence has the advantage that the fitting is extremely smooth-running and enables high production tolerances. The operating sequence, which is coming more widely accepted on the market, offers additional security and is frequently used in nurseries, single homes, apartment blocks and residential homes for the elderly.
The special feature here is the dual function of the crosswise handle position: If the handle is moved to the crosswise position from below, the fitting is in the tilt position. If the handle is turned another 90° to the 180° position, the sash is in parallel action position. If the handle is turned back to the 90° position, the window sash can be moved to the turn position.
To close the window, the handle must be turned downwards to the initial position. A further benefit is that the activPilot Concept modular system can also be used for activPilot Comfort PADK. The natural air exchange in parallel action is proven to create a healthy indoor climate.
The special feature:
This position offers the same protection from burglary as in the close state
- burglary-resistance according to DIN EN 1627 – 1630 up to resistance class RC 2 is possible.
- The innovation: burglary-resistant ventilation!
